| Feature | Specification |
|---|---|
| Voltage | 220–240 V (230 V nominal, single-phase) |
| Power Input | 300 W |
| Rated Current | 2.3 A |
| Charging Current | 6.5 A |
| Frequency | 50–60 Hz (region-dependent) |
| Compatibility | STIHL AK System & AP System batteries (includes AR backpack batteries) |
| Cool‑down System | Active fan-assisted cooling |
| Charge Process | Two-stage (constant current then constant voltage), auto shut-off when full |
| LED Status Indicator | Yes, shows charge status |
| Mounting & Storage | Wall-mountable with cable wrap jig |
| Weight | Approx. 1.2 kg |
| Protection Class | Class II double-insulated |
| Charging Times (Typical): | – AK 10 / AP 100: ~45 min– AK 20 / AP 200: ~55 min– AK 30 / AP 300: ~60 min– AP 300 S: ~70 min– AP 500 S: ~90 min– AR 2000 L: ~150 min– AR 3000 L: ~220 min |

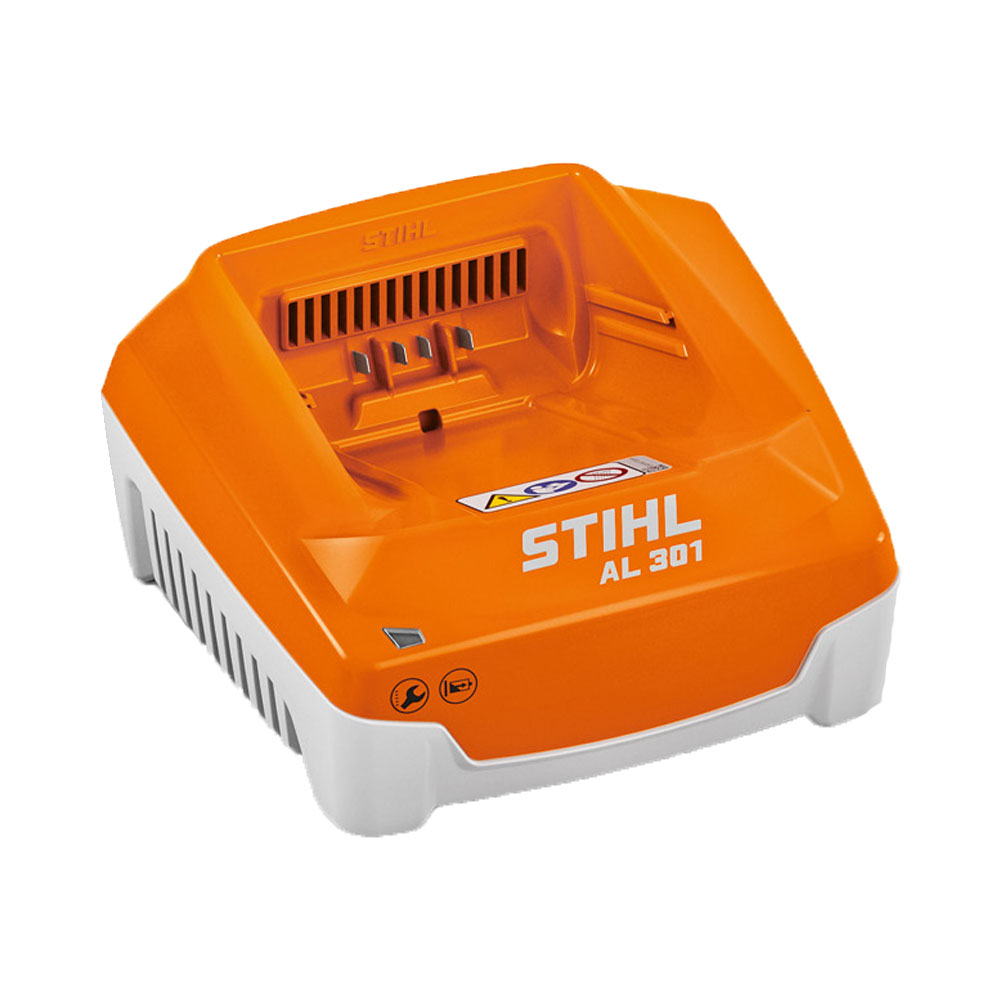

The STIHL AL 301 is a high-performance 230V charger designed for fast, efficient charging of all STIHL AK and AP battery systems. Featuring active cooling and LED status indicators, it ensures optimal charging times while protecting battery life. Lightweight, durable, and wall-mountable, it’s ideal for both professional and home users who need reliable power, fast.
